COLLINS 204C-1

GENERAL DESCRIPTION

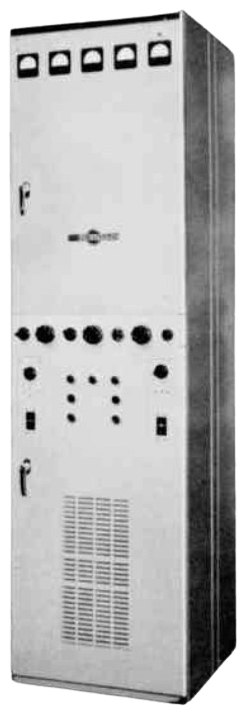

204C-1 10 KW POWER AMPLIFIER

A manually tuned linear power amplifier capable of 10 kw output over the 4 to 25 mc frequency range. A nominal 0.1 watt drive signal at the desired output frequency is supplied by an external source.

May be used in continuous duty applications with either attended or unattended operation. Local or remote control may be employed.

Phase detectors which provide an accurate resonance indication facilitate tuning. A 4CX5000A ceramic-seal tetrode is used as the output amplifier.

Accurate neutralization is maintained over the entire frequency range by a broadband capacitance bridge circuit. A pi-L output network provides very high harmonic attenuation in the final amplifier.

Power amplifier tuning and loading controls have very low inter-action.

TECHNICAL SPECIFICATIONS
Drive Power	0.1 watt nominal.
RF Bandwidth	Not less than 16 kc between -1 db points.
Distortion	3rd and higher odd order distortion products are at least 38 db below either of two equal tones required to drive the power amplifier to 10 kw output.
Power Output PEP	10 kw
Primary Power	200-250 v (230 v nom) 50-60 cps, 3φ, 20 kva
Input Impedance	52 ohms
Output Impedance	52 ohms
Dimensions	24 x 26 x 86 inches (W x D x H)
Weight	1000 lbs.
Specifications may change without notice

TUBE COMPLEMENT
RF stages		AF stages and modulator		Rectifiers
Number	Type	Number	Type	Number	Type
1	4CX5000A

THIS TYPE OF TRANSMITTER IS INSTALLED IN THE FOLLOWING COUNTRIES
	ITU	Country	ITU	Country
