COLLINS 432D-2

GENERAL DESCRIPTION

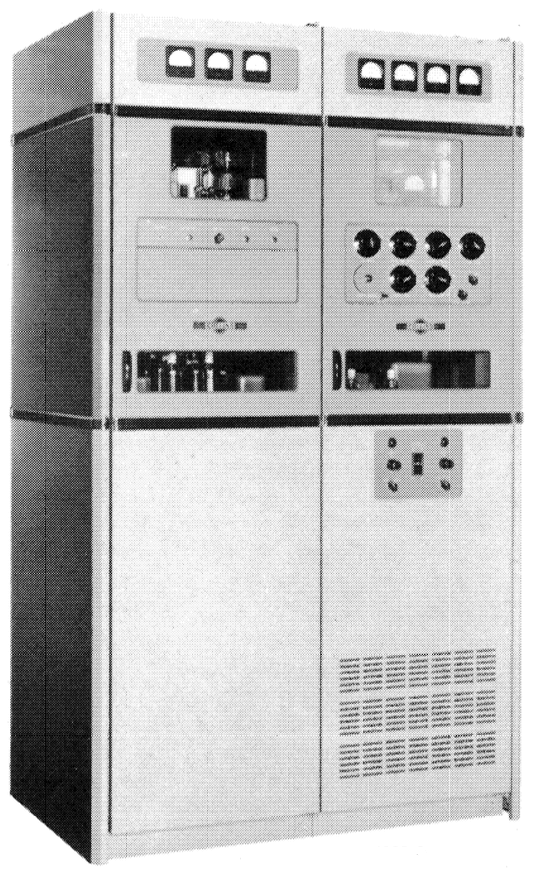

432D-2 2.5/2 KW TRANSMITTER

Covers the 2 to 30 mc frequency range with 10 crystal-controlled channels rapidly and automatically tuned by Autotune® system.

The 432D-2 has a power output of 2 kw AM and 2.5 kw CW and FSK. FSK may be employed on up to three of the channels by installation of 709E-1 Frequency Shift Oscillator accessory units in the transmitters.

One of the 10 channels may likewise be derived from an external signal source, such as a stabilized master oscillator.

Remote control of all transmitter functions is available with the 177M-1. Channels are easily preset by Autotune® tuning controls on the front panel of the transmitter.

Improved performance is achieved by modern components, such as vacuum variable tank capacitor and beam power tetrode.

TECHNICAL SPECIFICATIONS
Power Output	2-20 mc, 2500 watts CW-FSK, 2000 watts AM 20-24 mc, 2250 watts CW-FSK, 1750 watts AM 24-30 mc, 2000 watts CW-FSK, 1500 watts AM
Frequency stability	AM and CW - Better than 0.002% (depending on crystal) FSK - 0.0005%
Output Impedance	50-70 ohms with maximum SWR of 2 to 1. Connector provided for RG-17/U coaxial cable
Primary Power	230 v to 208 v, 3 phase, 60 cps with 50 cps modification available
Specifications may change without notice

TUBE COMPLEMENT
RF stages		AF stages and modulator		Rectifiers
Number	Type	Number	Type	Number	Type
1	4-1000A	2	4-400A	2	4B32
1	4-65A	2	12AU7	2	3B28
3	5763
1	5654
