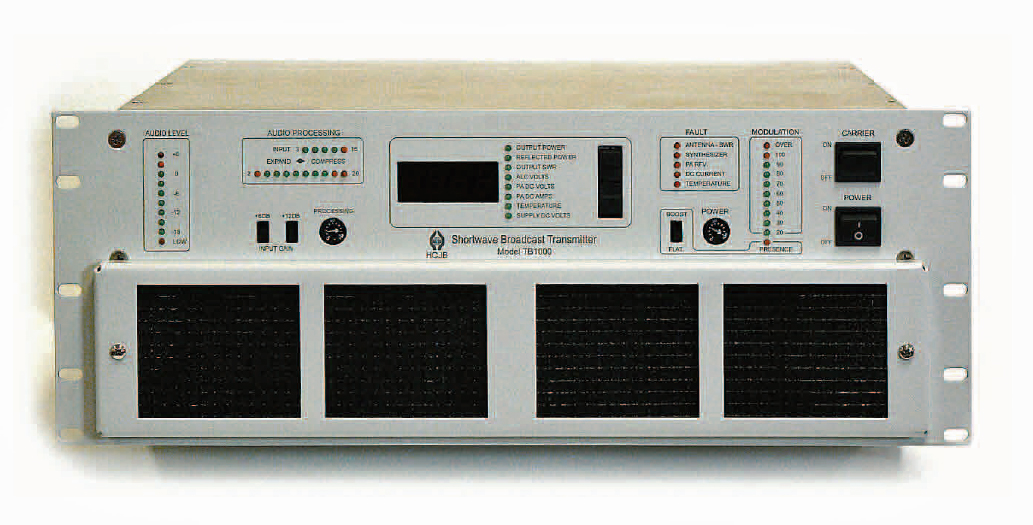

HCJB GLOBAL TB 1000

GENERAL DESCRIPTION

The TB1000 transmitter operates in the four shortwave tropical bands and the two lowest international shortwave bands (2.3 – 7.3 MHz).

It was developed to meet the need for a compact, easily transported shortwave broadcast station that can be set up and operated anywhere in the world.

By delivering program content up to a distance of 300 to 400 miles during daytime hours, it is the perfect tool for delivering the gospel to remote and sparsely populated regions.

TECHNICAL SPECIFICATIONS
TRANSMITTER RF PERFORMANCE
Frequency range	2.3 to 7.35 MHz
Wavelength bands	41m, 49m, 60m, 75m, 90m and 120 meters
Ouput power	1 kW
Output impedance	50 ohm unbalanced
Spurious Outputs	<72 dbc
Balun	none
AUDIO PERFORMANCE
Type of modulation	solid state PDM
Input impedance	20k balanced
Freq. response	+1dB to -2dB, 50Hz to 4000 Hz
Audio distortion	less than 2% at 1000 W, 85% modulation
TUNING
Type	fixed frequency (customer resettable within one band)
SERVICES REQUIRED
Connect power	230 V AC single phase 15A
Power Factor	near unity
Compressed air	no
OPERATING ENVIRONMENT
Humidity	0 - 80% at 20 degrees C
Temperature	0 - 50 degrees C
Altitude	to 3000 m (10,000 feet)
CABINET DIMENSIONS
Height	12.5"
Width	19"
Length	17"
No. of units	P.S. (5.25" high), RF (7" high)
Specifications may change without notice

TUBE COMPLEMENT
RF stages		AF stages and modulator
Number	Type	Number	Type
-	-	-	-
