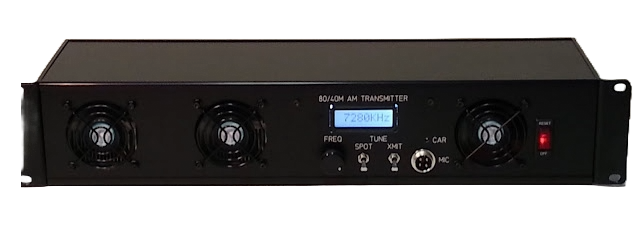

The SuperSenior covers two of your favorite bands. It is available in TWO models, one covering 160 and 80 meters and the other covering 80 and 40 meters.
LEGAL LIMIT
The SuperSenior provides LEGAL LIMIT output with up to 375 watts of carrier (adjustable from front panel) and audio peaks reaching 1500 watts, no time limit!
AUDIO QUALITY PLUS
The SuperSenior provides audio quality next to none! You can install the K7DYY D104 MKII Audio Processor in the base of your D104 or use professional audio equipment with the SS.
PLL VFO CONTROL
The SuperSenior has advanced PLL VFO control providing 1 khz steps.
POWER EFFICIENCY
The SuperSenior connects to 120 V AC supply. It provides legal limit output and it draws only 5 amperes at full power, slightly more on audio peaks.
PROTECTION
The SuperSenior has protection circuitry to keep high SWR or direct shorts from damaging the transmitter.
AUTO BAND SELECT
The SuperSenior will automatically select the correct band for you. Just dial in your frequency and the SS does the rest.
FEATURES
Power Output Continuous 375 Watts Carrier
Two Models 160/80 meters or 80/40 meters
PLL "VFO" with 1 khz Steps
VFO Stability 5 PPM
Auto Bandswitching
SWR and Short Protection
T/R Switching Built In

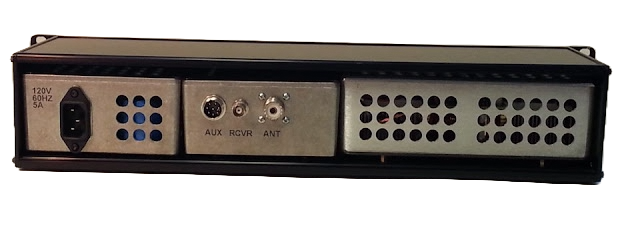

120 Volt AC Primary Power
600 Ohm Line Level Audio In
Power on MIC Connector for DYY Microphone Preamp
19 in Wide, 3.5 in High, 5 in Deep
Weight 10 lbs
TUBE COMPLEMENT
RF stages
AF stages and modulator
Number
Type
Number
Type
-
-
-
-
THIS TYPE OF TRANSMITTER IS INSTALLED IN THE FOLLOWING COUNTRIES
160M/80M * 80M/40M
