GENERAL DESCRIPTION

CYBERMAX AM+ BE 250W (1000W PEAK) AM TRANSMITTERS WITH ADJUSTABLE POWER!

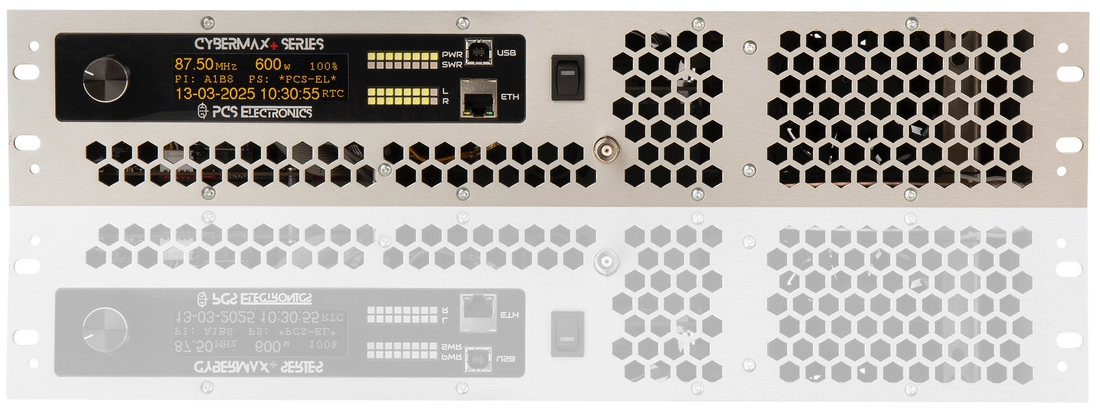

photo PCS Electronics CYBERMAX AM+ BE

1000W AM MW transmitter with DSP processing, PWM modulator, DDS and automatic power scheduler!

1000W (peak) for MW and SW bands (one band per device), now finally with direct drain PMW modulation of output amplifier. This translates to ~200-250W max carrier power with positive modulation exceeding 100%.

While for many mentioning AM transmitters brings back childhood memories, these are actually still used widely in some countries. Besides, AM can be lots of fun to play with. Long wire antennas, different signal propagation (even worldwide), the nostalgia that comes packed with it.

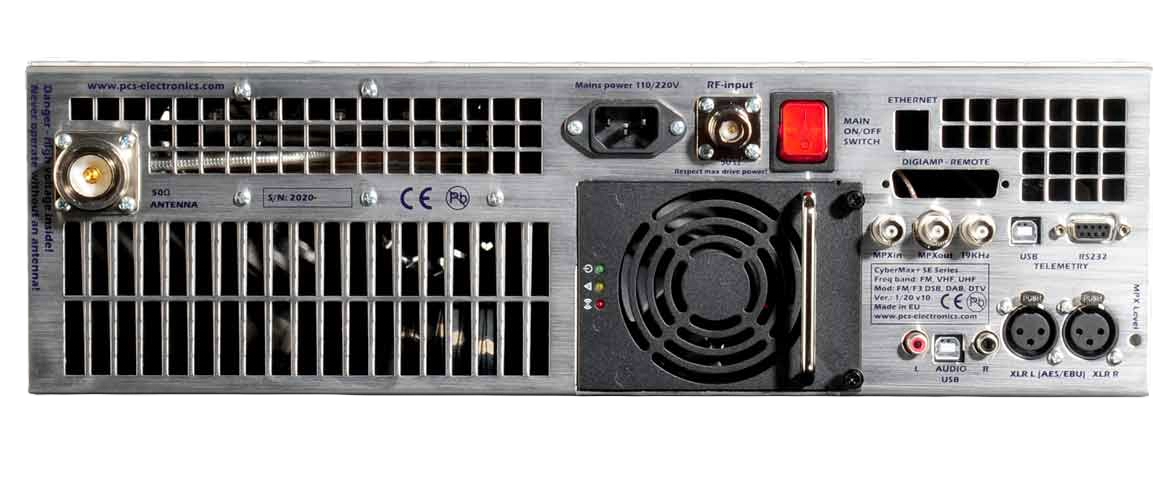

photo PCS Electronics CYBERMAX AM+ BE

Equipped with DSP which makes it possible to control parameters of the audio chain, such as the compression, low pass audio filter cut frequency and pre-emphasis via convenient LCD with menu system. Other features, such as the fully solid state PWM modulator which ensures crisp audio, 125% positive peak modulation, compact form factor, plenty of audio input options and LCD display unit make this unit really something special in this modern age.

The new Black Edition (BE+) series brings completely new advanced graphics display with many new features such as web control interface, SNMP monitoring, ethernet connectivity, two-color VU meter, smooth rotary button operation and full control over every aspect.

Manuals, drivers, firmware updates and brochures for most products are available on the PCS Electronics website.

What’s new in BE version:

On board clock with programmable scheduler, adjusting your output power from hour to hour and from day to day as you desire!
Bright 122×32 graphical LCD with rotary encoder, USB and Ethernet ports.
Remote control via Ethernet via web browser as standard, possible even from mobile phone
Fully configurable via OLED display or web interface
Firmware of all sub-systems can be upgraded via USB interface. If we release an update or a new feature you will be able to install it.
Optional streaming and Mp3 playback
Calibrated two-color VU meters for power, reflected power and audio level
Cost effective, energy efficient and practical

What parameters can I change via remote control?
Frequency, various alarms, power, network parameters, time settings, levels, DSP parameter can be changed via Ethernet in web browser. No software installation is needed, just connect your transmitter to local Ethernet and open web browser to access all the settings. Check the manual for more info.

What is included?

Transmitter
USB cable
Short Ethernet cable
Mains power cable is with EU plug. Use an adaptor or different cable in the US and other countries!

TECHNICAL SPECIFICATIONS
Peak RF Output Power 1000W model	~1000W peak, ~250W carrier
Output connector	N female for 1KW
Output Impedance	50 Ohms
Frequency Range (shortwave version)	160m, 80m, 40m (other SW bands also available, please ask)
PLL Steps	1KHz
Frequency stability	± 50Hz
RF output	Harmonics: -50dB, Spurious: -70dB
Power Supply 1000W model	Mains 110V-240V/50-60Hz
Filter	Adapted to your band for best performance
Audio performance	Compressor, low pass filter, limiter, treble, bass adjustment
RF output ruggedness	> 2:1 VSWR
Modulation	AM (CW input on-board. TTL 5V for disable)
Size	1000W 2H rack
Audio input	Accepts either mono or stereo signal (transmission is mono)
Audio connectors	XLR, RCA and USB audio input, BNC (RCA will be removed in future models)
Modulation	AM, ~125% positive mod, PWM modulator
AUDIO SECTION
Audio connectors	BNC, RCA, XLR and USB audio input
Audio level required	4dBu (1.23Vrms @ 0db gain), -10dBu (0.316Vrms @ +14dB gain), adjustable in wide range
Audio input impedance	10Kohms resistive, balanced
Pre-emphasis	Flat, 50 or 75usec
Specifications may change without notice

TUBE COMPLEMENT
RF stages		AF stages and modulator
Number	Type	Number	Type
-	-	-	-
