PLL COM LTD AM-20W

GENERAL DESCRIPTION


Technical Specification for the 0-20W Carrier 80W P.E.P DDS SYNTHESIZER

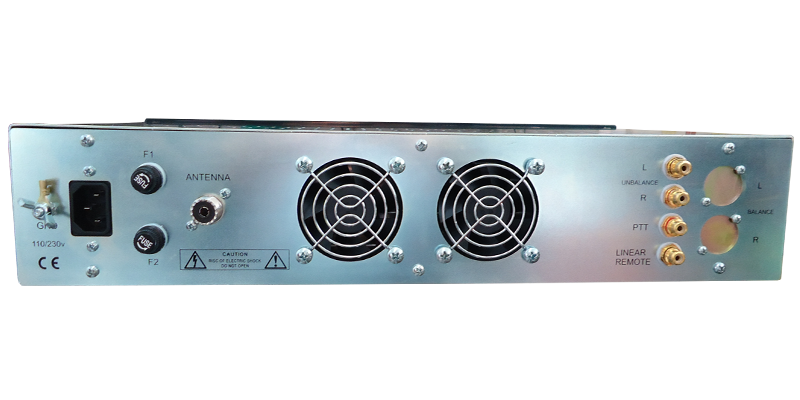

photo PLL Com Ltd AM-20W This unit is a highly efficient professional AM transmitter with up to 20W of clean output. Ideally suited for radio stations that demand broadcast quality and broadband operation (no-tune) - an integrated single box solution incorporating the exciter, RF amplifier, power supply and modulator, this transmitter can also serve as an exciter for driving external RF amplifiers. Its synthesized exciter with advanced DDS technology is designed for pristine audio quality and unsurpassed reliability, as numerous of our AM transmitters are operating trouble-free in some of the world's most remote installations.

All our AM transmitters are loaded with features, such as a front-panel LCD display, adjustable RF output power and modulation, underlying architecture that includes a unique DDS synthesizer, ultra-low distortion AM modulator integrated into a great performing, highly stable AM transmission system. The power amplifier is based on modern MOSFET devices & techniques. High airflow fans keep the power amplifier constantly ventilated, resulting in 24/7 low temperature operation. For the user's convenience, amplifiers are protected from damage by temperature control systems and antenna fault (VSWR) monitoring which react to faults by reducing the output power to a safe operating level, keeping you on air rather than shutting down completely.

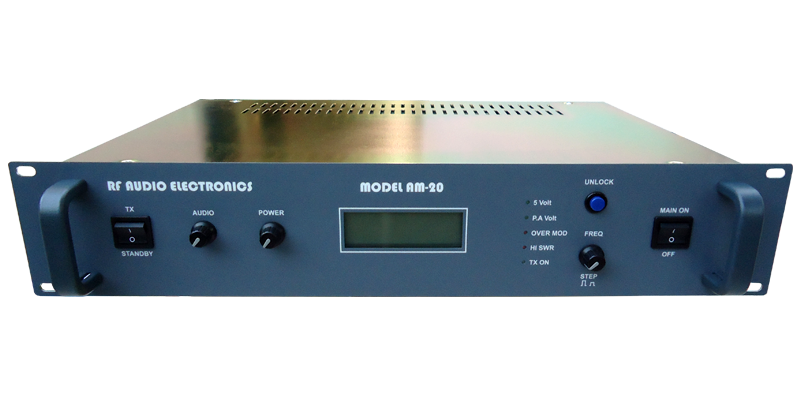

photo PLL Com Ltd AM-20W Being more configurable and flexible than other units in their class, our units offer exceptional value with no compromise on performance.

Frequency range varies and is programmed according to regional regulations and order specifications.

Feel free to ask for any modification or add-on. As an electronics industry we are able to provide you with custom made design well suited for your specific needs.

Has Already Certificate for CE , R&TTE , EMC.

TECHNICAL SPECIFICATIONS
Operating frequency to be confirmed by manufacturer
Frequency step 1Hz, 10Hz, 100Hz, 1KHz, 5KHz, 9KHz, 10KHz DDS SYNTHESIZER
Power adjustment CARRIER 0~20W, (0~80W P.E.P) MAX
Frequency response 50HZ - 10KHZ ± 0.5DB
Audio input RCA FEMALE: 600mV/10k OR XLR 600 OHM
RF output COAXIAL FEMALE CONNECTOR SO239 (VHF), 50 OHM
Hum and noise >-65DB OR BETTER
SWR protection YES
Unlock protection YES
Lock indicator YES
HI SWR indicator YES
24 hour operation YES
Thermal protection YES
Watt meter and SWR meter included YES
Modulation meter YES
Internal power supply 115 / 230-240V AC YES
P.T.T switch YES
Remote linear relay control YES
Balance audio in XLR YES (OPTIONAL)
Size 2U RACK
Specifications may change without notice

TUBE COMPLEMENT
RF stages AF stages and modulator
Number Type Number Type
- - - -
