PLL COM LTD AM-75W

GENERAL DESCRIPTION

Technical Specification for the 0-75W Carrier 300W P.E.P DDS SYNTHESIZER

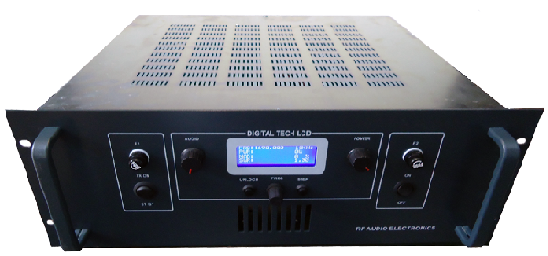

photo PLL Com Ltd AM-20W

This unit is a highly efficient professional AM transmitter with up to 75W of clean output. Ideally suited for radio stations that demand broadcast quality and broadband operation (no-tune) - an integrated single box solution incorporating the exciter, RF amplifier, power supply and modulator, this transmitter can also serve as an exciter for driving external RF amplifiers. Its synthesized exciter with advanced DDS technology is designed for pristine audio quality and unsurpassed reliability, as numerous of our AM transmitters are operating trouble-free in some of the world's most remote installations.

All our AM transmitters are loaded with features, such as a front-panel LCD display, adjustable RF output power and modulation, underlying architecture that includes a unique DDS synthesizer, ultra-low distortion AM modulator integrated into a great performing, highly stable AM transmission system. The power amplifier is based on modern MOSFET devices & techniques. High airflow fans keep the power amplifier constantly ventilated, resulting in 24/7 low temperature operation. For the user's convenience, amplifiers are protected from damage by temperature control systems and antenna fault (VSWR) monitoring which react to faults by reducing the output power to a safe operating level, keeping you on air rather than shutting down completely.

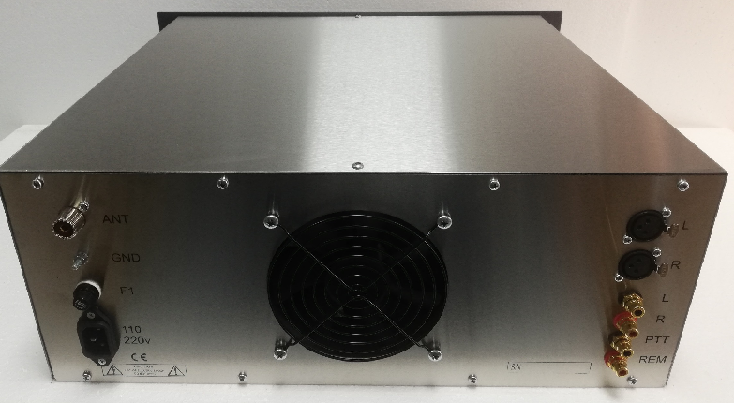

photo PLL Com Ltd AM-20W

Being more configurable and flexible than other units in their class, our units offer exceptional value with no compromise on performance.

Frequency range varies and is programmed according to regional regulations and order specifications.

Feel free to ask for any modification or add-on. As an electronics industry we are able to provide you with custom made design well suited for your specific needs.

Has Already Certificate for CE , R&TTE , EMC.

TECHNICAL SPECIFICATIONS
Operating frequency	to be confirmed by manufacturer
Frequency step	1Hz, 10Hz, 100Hz, 1KHz, 5KHz, 9KHz, 10KHz DDS SYNTHESIZER
Power adjustment	CARRIER 0~75W, (0~300W P.E.P) MAX
Frequency response	50HZ - 10KHZ ± 0.5DB
Audio input	RCA FEMALE: 600mV/10k OR XLR 600 OHM
RF output	COAXIAL FEMALE CONNECTOR SO239 (VHF), 50 OHM
Hum and noise	>-65DB OR BETTER
SWR protection	YES
Unlock protection	YES
Lock indicator	YES
HI SWR indicator	YES
24 hour operation	YES
Thermal protection	YES
Watt meter and SWR meter included	YES
Modulation meter	YES
Internal power supply 115 / 230-240V AC	YES
P.T.T switch	YES
Remote linear relay control	YES
Balance audio in XLR	YES (OPTIONAL)
Size	4U RACK
Specifications may change without notice

TUBE COMPLEMENT
RF stages		AF stages and modulator
Number	Type	Number	Type
-	-	-	-

THIS TYPE OF TRANSMITTER IS INSTALLED IN THE FOLLOWING COUNTRIES
	ITU	Country	ITU	Country
	AUS	AUSTRALIA
